Upgraded this year to the PerfectBay enclosure from the net return and absolutely love it.
Loading the 3D view…
By placing an order, you are agreeing to our privacy policy and terms of service.
- BlackStop Wraparound Design: One continuous piece of black-out fabric darkens the room for a cleaner, deeper picture.
- Borderless Impact Screen: Heavy-duty triple-layer screen with noise dampening.
- Up to 15.5-Foot Widths: Four depth options cover a luxury basement or a commercial academy.
- Commercial-Grade Durability: Withstands thousands of high-speed strikes for long-term use.
- Free Shipping: Ships free within the contiguous 48 states.
Complete Package
Pro Enclosure Golf SimulatorPick your launch monitor, then add a hitting mat and a projector
From $5,976.95 →
Carl's Place
Pro Golf Simulator Enclosure
Some golf rooms get shown off. Others get explained. The Pro is Carl's Place's premium, commercial-grade enclosure, built for the first kind: a rigid frame and higher screen tension hold the surface flatter, for a more finished look, because a projected image shows every ripple in a loose screen. For dedicated simulator rooms, golf academies, and luxury home bays where appearance carries weight.
Every kit ships with a triple-layer impact screen, the single-piece BlackStop™ wraparound enclosure, and steel corner fittings, all made in the USA. You source or add the 2-inch EMT frame that gives the Pro its rigidity, and the kit covers the rest.
- BlackStop™ single-piece wraparound darkens the room for deeper contrast and immersion
- Two premium, triple-layer screens: Premium and High-Contrast Gray
- 18 sizes in 5, 8, 10, and 15 ft depths
- Made in the USA
Carl's Place builds each enclosure to order and ships it by FedEx or UPS ground, usually in about a week. Manufacturer delays can happen; we email tracking the moment it ships. With the Pipe Framing Kit added, Carl's ships the kit in 8 to 13 boxes rather than on a freight pallet, and every add-on on this page ships by ground, free within the contiguous 48 states.
Want the finished bay in one order? The Pro Enclosure Golf Simulator builds on this enclosure with the mat, projector and launch monitor you pick, shows it in 3D at real size, and goes to your cart as one package.
Authorized Carl's Place dealer · Free shipping within the contiguous 48 states · Affirm financing
Watch the Build
Carl's Place Pro Kit Assembly
See how the rigid frame, BlackStop™ wraparound, and triple-layer screen go together on the 2025 Pro model.
18Enclosure Sizes
3Screen Layers
15 ftMax Depth
USAMade in USA
Why It's the Pro
Built for a Finished, Pro-Grade Bay
BlackStop™ Wraparound
One continuous piece of black-out fabric wraps the whole bay. No gaps between panels, no stray light, and the room goes dark enough that the image is all you see.

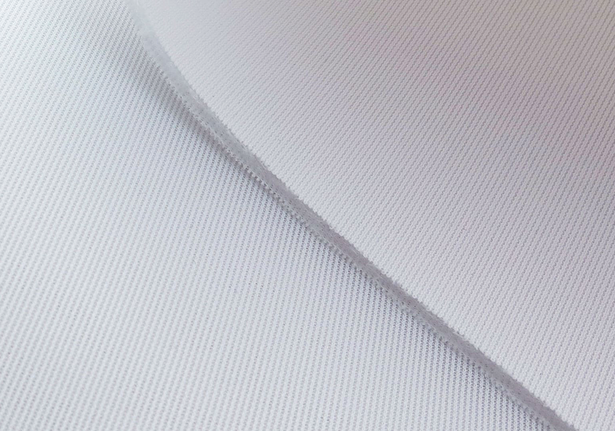

Triple-Layer Premium Screen
Three layers split the work: a sharp, detailed picture up front, quiet, controlled impact behind it. Choose Premium white, or High-Contrast Gray for rooms with ambient light.
Borderless Floor-to-Turf
The cabled design pulls the image down to meet your turf with no bottom border, so the fairway starts where your floor ends.
Rigid 2-Inch EMT Frame
Heavier 2-inch steel EMT and higher screen tension hold the surface flatter than a standard build. On a projected image, flat is the difference you can see from the doorway.
Detachable Flaps
Secure fasteners hold the side flaps and foam exactly where they belong. Small detail, but it is the one that keeps a finished bay looking professional instead of improvised.
Home Bay to Commercial Venue
Eighteen sizes in depths from 5 to 15 ft cover a home room and a commercial venue with the same enclosure. The home version is not a lesser version.
Room Planning
Space You Will Need
Measure before you buy. These are the manufacturer's clearances for a safe, well-tensioned Pro bay. Plan your room around them and the build goes smoothly.
Hitting Distance10 to 12 ft minimum from the screen
Side Buffer2 to 3 in. on each side
Top Buffer2-3 in. above the enclosure
Behind the Screen12-16 in. of free clearance (9.5 in. minimum for the rear fittings)
Frame vs. Screen2 in. EMT, built to your custom cut diagram
Frame Material2-inch steel EMT (not PVC)
Is It Right for You
Who the Pro Enclosure Is Built For
The Commercial Operator
Customers judge the bay before the first swing. You need an enclosure that takes heavy daily use and still looks sharp for paying customers, week after week.
The Golf Academy
You teach and fit all day. A flat, true screen surface and a clean overhead sightline give your launch monitor and lesson video the setup they need.
The Luxury Home Build
Your sim room is on the house tour. You want the darker image and the finished look that make a guest stop talking when the projector comes on.
The Upgrader
You ran a net or a DIY bay long enough to notice the ripple in the screen and the light sneaking in at the edges. The flatter surface, rigid frame, and polished finish of the Pro tier fix what you noticed.
Full Impact
Real-Ball Rated
Carl's Place impact screens take real golf balls at full driver speed. Take your fastest swings. The BlackStop™ wraparound and released-tension design catch and absorb what the screen does not, protecting your room and gear.
The Details
Specifications

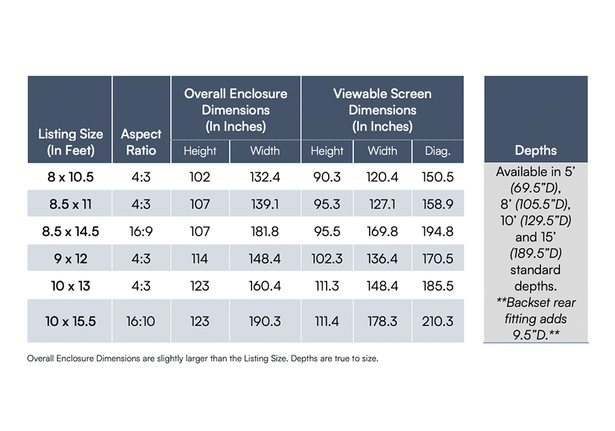

Sizes18 (5, 8, 10, and 15 ft depths)
Screen MaterialsPremium & High-Contrast Gray (triple-layer)
EnclosureBlackStop™ single-piece black-out
Frame2-inch steel EMT (add the Pipe Framing Kit, or cut your own)
FittingsSteel corner & support fittings
TensioningCable receivers, springs & releasable zip ties
ScreenTriple-layer, made in the USA
Documentation2025-model assembly & spec guides
In the box: premium triple-layer impact screen, BlackStop™ black-out enclosure, steel corner fittings, all required zip ties, and detailed assembly instructions. Optional add-ons include pre-cut EMT frame pipes, safety baffles, a back cover kit, and a Movable Crossbar sized to hold an overhead launch monitor.
Compare the Options
Which Carl's Place Enclosure Is Right for You
| Feature | Pro (from $3,409.95) | DIY C-Series (from $999.95) | Curved Kit (from $4,894.95) | Built-In Room Kit (from $790) |
|---|---|---|---|---|
| Type | Freestanding, premium | Freestanding DIY kit | Freestanding, curved | Permanent built-in |
| Frame | Rigid 2-inch EMT | 1-inch EMT (you build) | Rigid 2-inch EMT | Mounts to your wall |
| Screen | Premium/Gray triple-layer | 4 materials | Curved triple-layer | Screen sold to fit |
| Screen Surface | High tension, flatter | Zip ties with a bottom cable | Wraparound, panoramic | Wall-flat |
| Look | More finished (BlackStop™) | Functional | Immersive, premium | Fully built-in |
| Install Effort | Moderate assembly | About an hour, DIY | Moderate assembly | Carpentry required |
| Best For | Premium & commercial | Budget first build | Maximum immersion | Permanent dedicated room |
On a tighter budget? The Carl's Place DIY Golf Simulator Enclosure builds a solid bay for less. Want maximum immersion? The Carl's Place Curved Golf Enclosure Kit wraps the screen around your swing. Building the sim into a wall? See the Carl's Place Built-In Golf Room Kit. Just need the screen? Shop Carl's Place golf impact screens.
Setup Guide
From Box to First Swing
1. Measure Your Space
Confirm 10 to 12 ft of hitting distance, 2-3 in. of side buffer, 2-3 in. above the enclosure, and 12-16 in. behind the screen (9.5 in. minimum for the rear fittings).
2. Build the 2-Inch Frame
Cut 2-inch EMT to the included plan, or add the pre-cut Pipe Framing Kit, cut to the sizes on your diagram.
3. Wrap the BlackStop™
Hang the single-piece BlackStop™ enclosure on the frame with the steel corner fittings and secure the detachable flaps.
4. Tension the Screen
Hang the triple-layer screen and tension it with the included cable receivers, springs and zip ties for a flat, even, distraction-free surface.
5. Aim the Projector
Center the projector on the screen and dial in the image. Darker rooms (or the High-Contrast Gray screen) give the deepest blacks.
6. Let It Settle
Give the screen a couple of days under tension to relax any wrinkles, keep new balls clean, and you are set for thousands of swings.
Installed, Not Assembled
The premium Carl's Place enclosure in your exact size, made in the USA and sold by an authorized dealer. Ships free within the contiguous 48 states. Expert support included, with Affirm financing available.
Choose Your Size & Screen
Related Reading
Plan Your Golf Room
Everything you need to size the room, pick a screen, and dial in your projector.
Buying Guide
Golf Simulator Room Size
The minimum ceiling, width, and depth you need for a safe home setup.
Setup Guide
Projector + Screen Pairing
How to match your screen material and projector for the sharpest image.
Setup Guide
Projector Distance & Mounting
Throw distance, mounting, and image size for a perfectly filled screen.
Buying Guide
Beating Ambient Light
Where the High-Contrast Gray screen shines in bright or garage rooms.
Why Top Shelf Golf
Your Purchase is in Good Hands
Authorized Carl's Place Dealer
1,194+ Verified Reviews
Fast, Tracked Shipping
Expert Support
1-888-871-6110
1-888-871-6110
Affirm Financing Available
From your first question to install day, we help you build the golf room you have been planning. Call us with questions about sizes, screen materials or what fits your space.
Common Questions
Frequently Asked Questions
What comes in the Carl's Place Pro enclosure kit?
Each kit includes the premium triple-layer impact screen in your chosen material, the BlackStop™ single-piece black-out enclosure, foam inserts that keep stray shots from bouncing off the frame, all the fittings you need to build your frame, cable receivers, springs and zip ties, and a custom diagram showing how to assemble the frame and how long to cut your pipes (made in the USA). For the frame, add the pre-cut 2-inch EMT Pipe Framing Kit, or buy EMT locally and cut it to the included diagram.
How much room do I need for the Pro enclosure?
Plan for 10 to 12 ft of hitting distance from the screen, 2-3 in. of buffer on each side, 2-3 in. of buffer above the enclosure, and 12-16 in. of clearance behind the screen, with a minimum of 9.5 in. required for the rear fittings. Build the frame to the dimensions on your custom cut diagram for even tension.

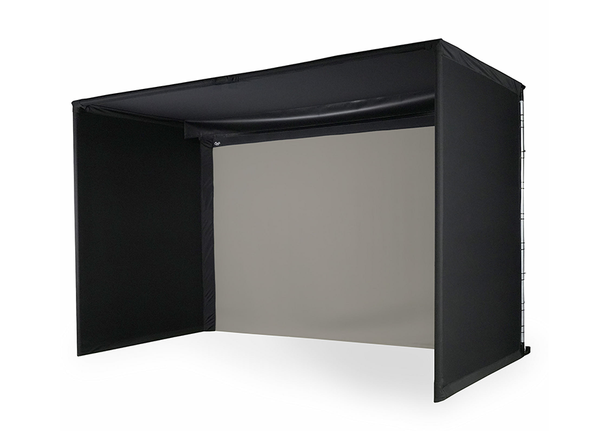

What is the difference between the Premium and High-Contrast Gray screens?
Both are triple-layer premium screens. The Premium screen is the standard pick for most rooms. High-Contrast Gray uses the same three-layer build but delivers deeper blacks and crisper color, which helps most in rooms with ambient light. Gray builds contrast by absorbing light, so the projector has to make that back up. We recommend at least 4,000 lumens in a room with any meaningful light, and 5,000 or more if the room is genuinely bright. In a room you can darken, the white screen gives the better image.
Do I need to buy the 2-inch EMT frame pipes separately?
The Pro frame is built from 2-inch steel EMT, which you can buy locally to save money using the included plan, or add the pre-cut Pipe Framing Kit for a no-measuring, no-cutting build. The kit includes the steel fittings and fasteners either way. Do not substitute PVC. It will not work with the fittings.
What is the difference between the Pro and DIY enclosures?
The Pro uses a rigid 2-inch EMT frame with higher screen tension for a flatter surface and a more finished look, plus the BlackStop™ wraparound. The Carl's Place DIY (C-Series) uses a simpler 1-inch frame and is the budget-friendly starting point. Choose Pro for dedicated rooms where screen quality and appearance matter most.
Can I mount an overhead launch monitor on the Pro enclosure?
Yes. The optional Movable Crossbar is built to hold overhead launch monitors and includes the fittings, pipes, and a fabric sleeve sized to your enclosure for a clean, pro-level look. It positions the unit over the hitting area without adding clutter to the bay. Carl's most popular Pro build pairs it with the 10 ft by 15.5 ft by 15 ft size: the width gives a 16:10 image, and 15 ft of depth puts the front top bar right where a BenQ LK936ST mounts, so the projector needs no ceiling mount at all.
How far away should I stand from the impact screen?
For the safety of both the golfer and the screen, the manufacturer recommends standing a minimum of 10 to 12 ft from the screen. This distance also helps prevent premature wear on the material.
Can I iron or steam the impact screen?
Time, tension and gravity remove most wrinkles on their own within a couple of days, though fold marks on a screen that sat boxed for a long time can take a few weeks. Skip the iron, since it is easy to damage the screen. A clean handheld steamer with distilled water speeds things up and should not leave water marks.
How do I extend the life of my golf screen?
Use new golf balls free of scuffs, grass stains, or marker, and keep your clubs clean. Protect the edges and grommets from direct strikes. Impact screens are wearable products and may show wear early with heavy use, but they are built to withstand many thousands of strikes over their life.
How long does the Pro enclosure take to assemble?
About two hours. Plan on a helper or two for lifting and joining the 2-inch frame pipes. You need 6 mm and 3/16 in. hex bits with a ratchet (or hex keys), a tape measure, a rubber mallet, pliers, a cutting tool and at least one 8 ft step ladder.
Does Top Shelf Golf offer financing?
Yes. We offer financing through Affirm with flexible monthly payments. Select Affirm at checkout to check your rate in seconds. It will not affect your credit score. Zero percent APR options may be available depending on eligibility.
What is the warranty and return policy?
Carl's Place screens and enclosure materials are wearable goods, so they do not carry a warranty. Some marking and wear from the first sessions is normal, and how long a screen lasts depends on skill level, how often you play and how it is installed. If something looks unusual rather than like normal wear, send us photos and your order number and we will take it up with Carl's Place. Impact screens can be returned unused, but not once they have been hit. Because fit and material choice matter, measure your space and pick your screen carefully before ordering, or call us at 1-888-871-6110 and we will help you choose.
Explore more golf simulator enclosures or call us at 1-888-871-6110
Carl's Place Pro Golf Simulator Enclosure
$3,409.95
